MPCL Copper
Tubes
for HVAC.
INDIA’s Trusted Copper Tubes Brand – Made 100% from LME A Grade Cathodes, 7 Stage Tested Tubes.
At MPCL, we manufacture a wide portfolio of copper tubes for the HVACR industry. Our production includes Grooved Tubes (LWC Form) and Plain Tubes (LWC, PCC, and Straight Length Form). Using 100% LME A-Grade Copper, our tubes are engineered for consistent performance, durability, and energy efficiency, meeting the needs of projects ranging from high-rise VRF systems to residential air conditioning.
Certificates
Engineered for every HVAC requirement.
Our Copper Tube Range

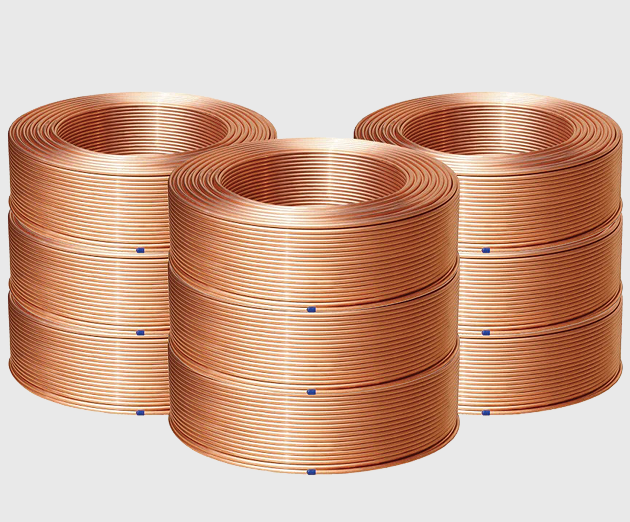

MPCL Level Wound Coils (Plain & Inner Grooved)
High Performance. High Efficiency. 100% Cathode, No Compromise.
Copper tubes in both Plain Wall (Plain Tubes) and Grooved Wall (Inner Grooved Tubes) configurations, supplied in level-wound packaging, designed for air-conditioning and refrigeration manufacturers. These tubes are used in the production of heat exchangers and evaporator coils for domestic air-conditioners (RAC) across indoor and outdoor units, as well as for commercial HVAC applications including chillers, AHUs (Air Handling Units), and other related systems.
Key Features
Transforming ideas into impactful solutions.
1
Optimum weight and easy to handle for quick installation
2
Excellent heat transfer efficiency
3
Highly resistant to corrosion and wear
4
Ideal for compact HVAC and refrigeration systems
Applications
- Compact HVAC systems
- Refrigeration units in small spaces
- Air conditioners for residential use
- Automotive air conditioning systems
Available Variations
Level Wound Coils (LWC)
Available in a range of sizes to suit compact systems and reduce installation space requirements.
Why Choose MPCL LWC?
The perfect solution for space-constrained applications where performance and weight efficiency are crucial

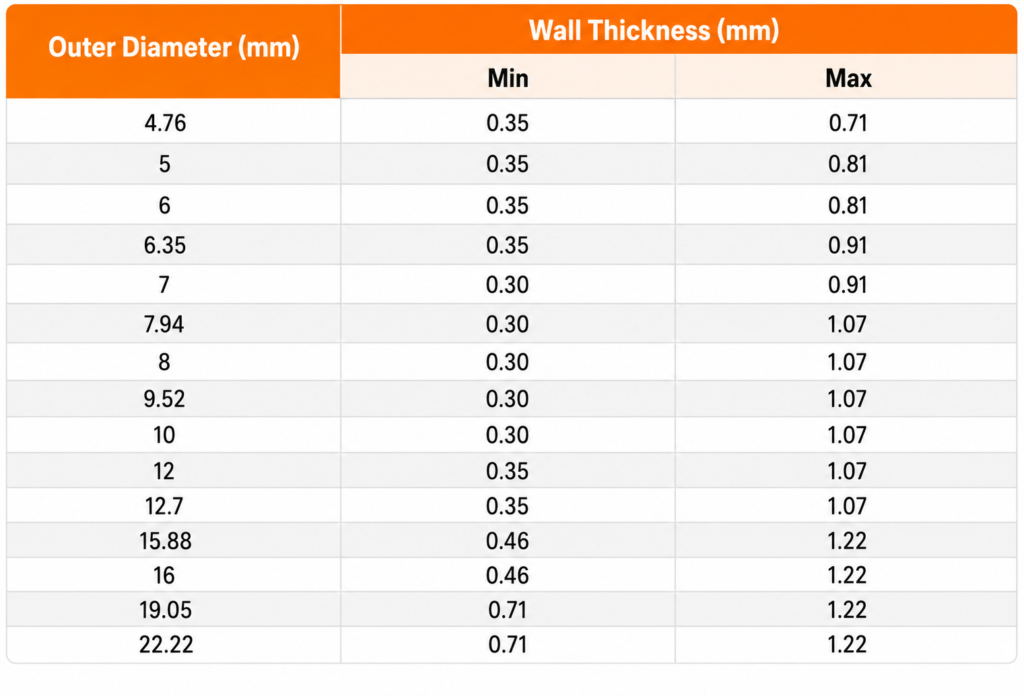

Copper Tube Dimensions & Weight Chart
Pancake Coils
- Outer Diameter (OD): 4.76 – 22.22 mm
- Wall Thickness (WT): 0.30 – 1.22 mm
- Temper:O50 (Light Annealed), O60 (Soft Annealed)
- Standards: ASTM B68/B75/B743, ASTM B280, JIS H 3300, EN 12735-1&2, IS 10773

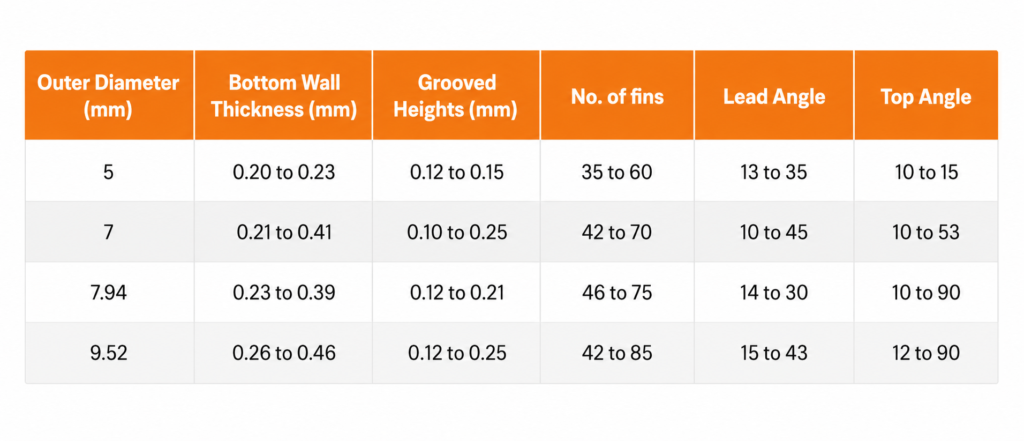

Straight Tubes
- Outer Diameter (OD): 5 – 9.52 mm
- Wall Thickness (WT): 0.18 – 0.50 mm
- Groove Geometry: Fin height 0.12 – 0.25 mm, Lead angle 10–45°, Apex angle 10–90°
- Standards: ASTM B68/B75/B743, ASTM B903, JIS H 3300, EN 12735-1&2, IS 10773

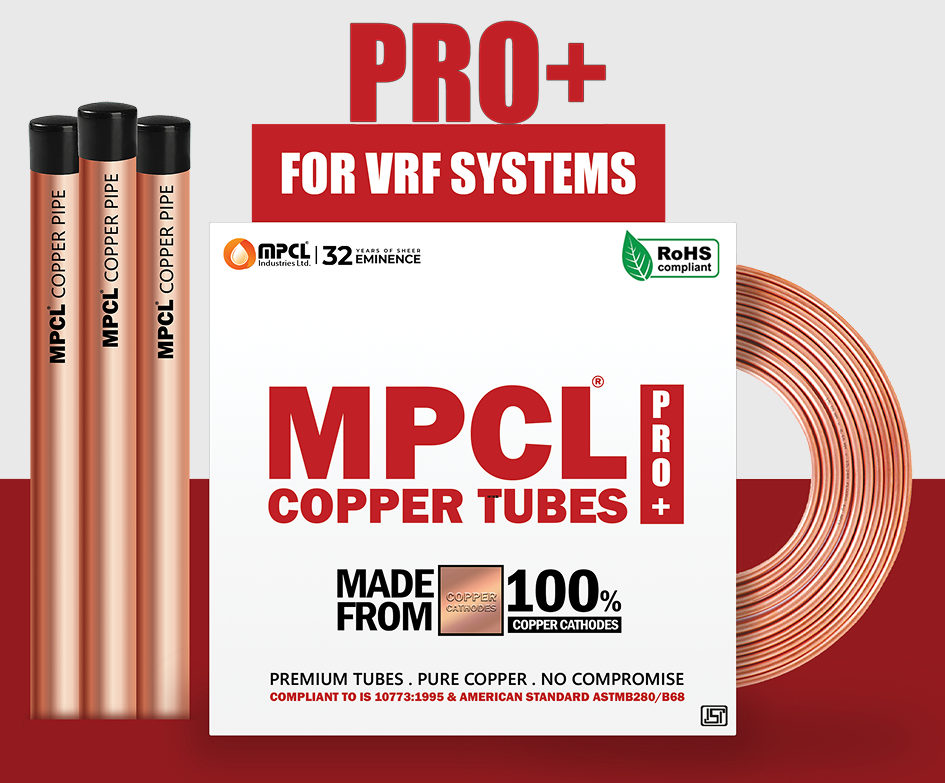

MPCL PRO+
Heavy-duty Strength for Demanding Systems
MPCL PRO+ copper tubes are engineered for high-performance applications, designed to withstand the most demanding environments. With superior heat transfer, strength, and corrosion resistance, MPCL PRO+ is perfect for large-scale HVAC and industrial systems that operate under extreme conditions.
Key Features
Transforming ideas into impactful solutions.
1
Heavy-duty, heavy-gauge construction for demanding environments
2
Optimized for high-pressure refrigerant gases
3
7-stage tested for unmatched durability and performance
4
99.96% copper purity for consistent performance and reliability
Applications
- Industrial refrigeration systems
- Large-scale commercial HVAC systems
- Automotive air conditioning
- VRV and VRF systems
Available Variations
Pancake Coils
Spiral-wound, available in 50 feet or 100 feet lengths for compact refrigeration and AC systems.
Straight Tubes
Customizable lengths up to 6 meters for industrial HVAC and refrigeration applications.
Why Choose MPCL PRO+
Because when performance is non-negotiable, you need copper tubes that deliver strength, stability, and efficiency every day.

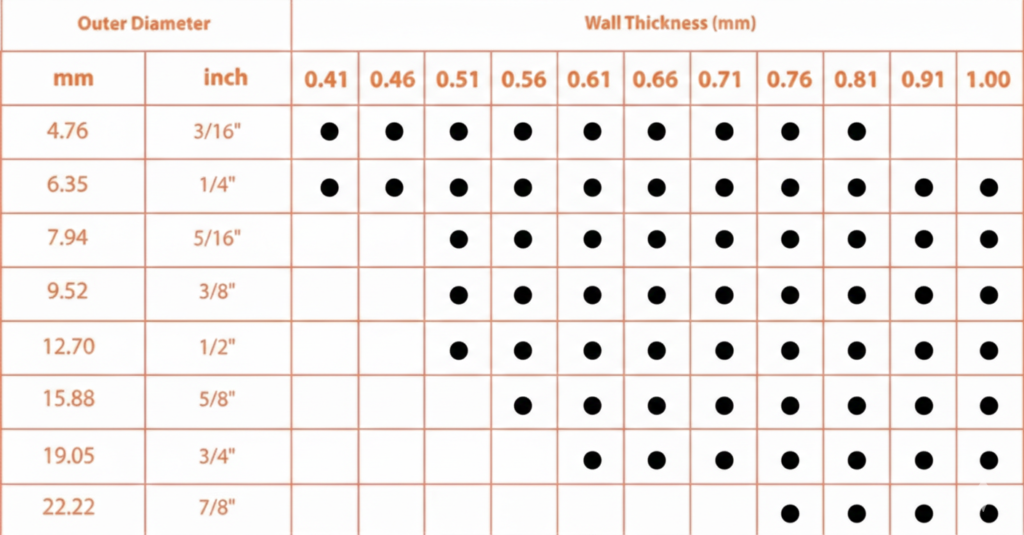

Copper Tube Dimensions & Weight Chart
Pancake Coils
- Outer Diameter (OD): 4.76 – 22.22 mm
- Length: 50 to 100 ft
- Wall Thickness (WT): 0.30 – 1.22 mm
- Temper: Hard / Half Hard / Quarter Hard
- Standards: ASTM B68/B75/B743, ASTM B280, JIS H 3300, EN 12735-1&2, IS 10773
Straight Tubes
- Outer Diameter (OD): 5 – 9.52 mm
- Length: Up to 6 meters
- Temper: Hard / Half Hard / Quarter Hard
- Wall Thickness (WT): 0.18 – 0.50 mm
- Groove Geometry: Fin height 0.12 – 0.25 mm, Lead angle 10–45°, Apex angle 10–90°
- Standards: ASTM B68/B75/B743, ASTM B903, JIS H 3300, EN 12735-1&2, IS 10773
MPCL PRO
High-Pressure Performance, Proven Reliability
MPCL PRO copper tubes are built to perform under high-pressure conditions, offering the perfect mix of reliability and cooling efficiency. Ideal for both residential and commercial applications, MPCL PRO is your go-to choice for systems demanding power and precision.
Key Features
Transforming ideas into impactful solutions.
1
Optimized for high-pressure refrigerant gases
2
Durable, reliable, and energy-efficient
3
7-stage tested to ensure flawless quality and long-lasting performance
4
99.96% copper purity for guaranteed efficiency
Applications
- Residential HVAC systems
- Commercial cooling projects
- High-pressure refrigerant systems
- Plumbing systems
Available Variations
Pancake Coils
Ideal for compact refrigeration and AC systems, available in 50 feet or 100 feet lengths.
Straight Tubes
Custom lengths available up to 6 meters, perfect for smaller scale installations.
Why Choose MPCL PRO
Because you need more than copper tubes — you need confidence in every connection.
Copper Tube Dimensions & Weight Chart
Pancake Coils
- Outer Diameter (OD): 4.76 – 22.22 mm
- Length: 50 to 100 ft
- Wall Thickness (WT): 0.30 – 1.22 mm
- Temper: Hard / Half Hard / Quarter Hard
- Standards: ASTM B68/B75/B743, ASTM B280, JIS H 3300, EN 12735-1&2, IS 10773
Straight Tubes
- Outer Diameter (OD): 5 – 9.52 mm
- Length: Up to 6 meters
- Temper: Hard / Half Hard / Quarter Hard
- Wall Thickness (WT): 0.18 – 0.50 mm
- Groove Geometry: Fin height 0.12 – 0.25 mm, Lead angle 10–45°, Apex angle 10–90°
- Standards: ASTM B68/B75/B743, ASTM B903, JIS H 3300, EN 12735-1&2, IS 10773

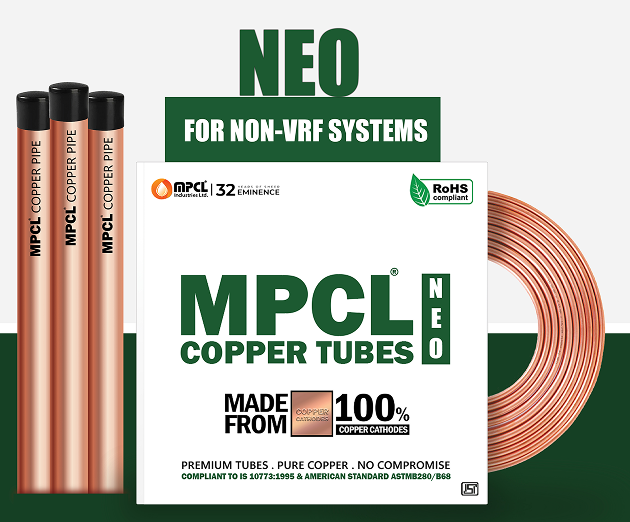

MPCL NEO
Reliable Performance for Low-Pressure Cooling
MPCL NEO copper tubes are specially designed for low-pressure applications, ensuring smooth, energy-efficient cooling. Whether it’s for residential or light commercial use, MPCL NEO provides dependable performance, optimized for systems with lower pressure requirements.
Key Features
Transforming ideas into impactful solutions.
1
Specifically designed for low-pressure refrigerants
2
Ensures steady, energy-efficient cooling
3
Tested through MPCL’s 7-stage quality benchmarks
4
99.96% copper purity ensures maximum reliability and performance
Applications
- Residential air conditioning
- Low-pressure refrigerant cooling
- Light commercial cooling setups
- Automotive air conditioning systems
Available Variations
Pancake Coils
Available in 50 feet or 100 feet lengths, ideal for compact systems.
Straight Tubes
Custom lengths available for flexible installations in constrained spaces.
Why Choose MPCL NEO
Because every detail counts when it comes to efficiency and long-term performance.

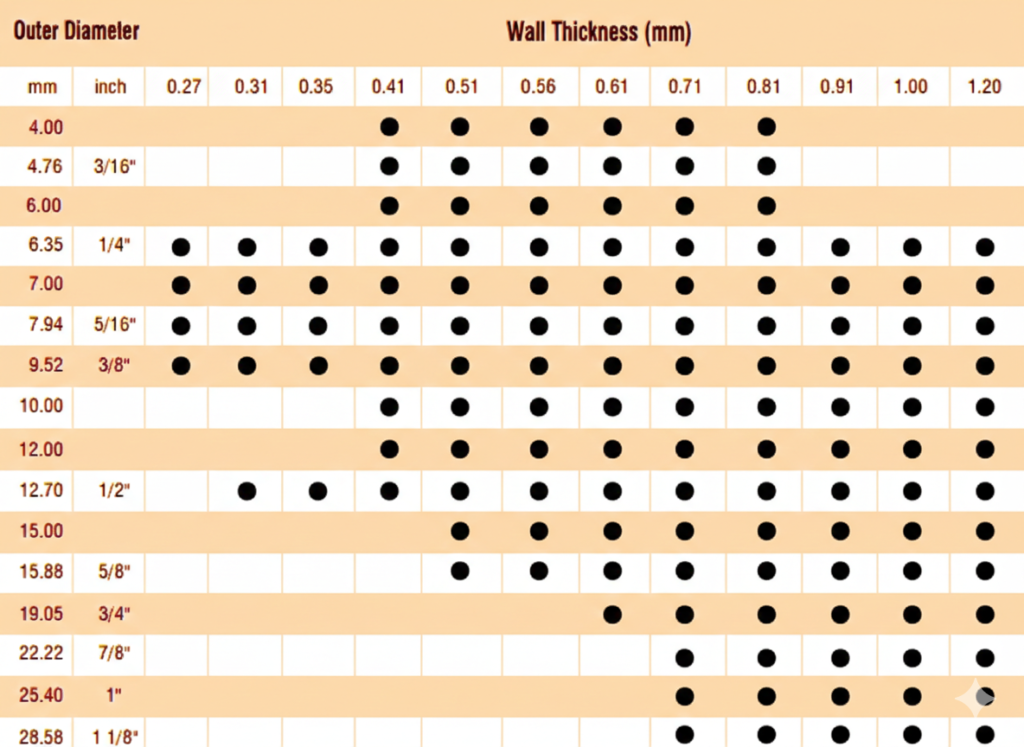

Copper Tube Dimensions & Weight Chart
Pancake Coils
- Outer Diameter (OD): 4.76 – 22.22 mm
- Length: 50 to 100 ft
- Wall Thickness (WT): 0.30 – 1.22 mm
- Temper: Hard / Half Hard / Quarter Hard
- Standards: ASTM B68/B75/B743, ASTM B280, JIS H 3300, EN 12735-1&2, IS 10773
Straight Tubes
- Outer Diameter (OD): 5 – 9.52 mm
- Length: Up to 6 meters
- Temper: Hard / Half Hard / Quarter Hard
- Wall Thickness (WT): 0.18 – 0.50 mm
- Groove Geometry: Fin height 0.12 – 0.25 mm, Lead angle 10–45°, Apex angle 10–90°
- Standards: ASTM B68/B75/B743, ASTM B903, JIS H 3300, EN 12735-1&2, IS 10773
MPCL Straight Length
High Performance. High Efficiency. 100% Cathode, No Compromise.
MPCL Straight Length Copper Tubes are precision-manufactured in standard and customized lengths such as 3 m, 4.5 m, 5.3 m and more, with outer diameters ranging from 4.76 mm up to 100 mm and above, serving HVAC&R, electrical, medical, and industrial applications. Available in ETP Grade for electrical use, Medical Grade for healthcare systems, and DHP & DLP Grades for air-conditioning and refrigeration, every tube undergoes a rigorous 7-stage quality testing process to ensure accuracy and reliability. Made exclusively from 100% LME A-Grade Copper Cathodes — No Scrap Used, MPCL tubes deliver superior purity, performance, and long service life with no compromise.
Key Features
Transforming ideas into impactful solutions.
1
Made from 100% LME A-Grade Copper Cathodes for maximum purity and durability.
2
Strictly tested through a 7-stage inspection process to ensure consistent performance and reliability.
3
Bright surface finish with accurate dimensions for smooth welding and hassle-free fitting.
4
Complies with JIS H3300 (Japan) and AS/NZS 1571 (Australia) standards, suitable for medical use.
Applications
- Air-conditioning & Refrigeration
- Reliable conductivity for power distribution systems.
- Safe for medical gas pipeline systems.
- Durable piping for industrial applications.
Available Variations
Unmatched Purity
Copper cathodes ensure a purity of 99.99%, making our tubes the best in terms of heat transfer and durability.
Global Standards
MPCL copper tubes adhere to the highest international standards, ensuring long-lasting performance.
Why Choose MPCL Straight Length
Manufactured from premium LME A-Grade copper, precision engineered for consistent performance, featuring a bright finish for smooth welding and installation, rigorously tested through strict quality control processes, and compliant with international industry standards.
Copper Tube Dimensions & Weight Chart
Pancake Coils
- Outer Diameter (OD): 4.76 – 22.22 mm
- Length: 50 to 100 ft
- Wall Thickness (WT): 0.30 – 1.22 mm
- Temper: Hard / Half Hard / Quarter Hard
- Standards: ASTM B68/B75/B743, ASTM B280, JIS H 3300, EN 12735-1&2, IS 10773
Straight Tubes
- Outer Diameter (OD): 5 – 9.52 mm
- Length: Up to 6 meters
- Temper: Hard / Half Hard / Quarter Hard
- Wall Thickness (WT): 0.18 – 0.50 mm
- Groove Geometry: Fin height 0.12 – 0.25 mm, Lead angle 10–45°, Apex angle 10–90°
- Standards: ASTM B68/B75/B743, ASTM B903, JIS H 3300, EN 12735-1&2, IS 10773
Copper Tube Dimensions & Weight Chart
Pancake Coils
- Outer Diameter (OD): 4.76 – 22.22 mm
- Wall Thickness (WT): 0.30 – 1.22 mm
- Temper:O50 (Light Annealed), O60 (Soft Annealed)
- Standards: ASTM B68/B75/B743, ASTM B280, JIS H 3300, EN 12735-1&2, IS 10773
Straight Tubes
- Outer Diameter (OD): 5 – 9.52 mm
- Wall Thickness (WT): 0.18 – 0.50 mm
- Groove Geometry: Fin height 0.12 – 0.25 mm, Lead angle 10–45°, Apex angle 10–90°
- Standards: ASTM B68/B75/B743, ASTM B903, JIS H 3300, EN 12735-1&2, IS 10773
Why Choose MPCL Straight Length?
Our copper tubes are widely used in piping system connections for air-conditioners and heat exchangers. They feature a bright surface finish with high dimensional precision, ensuring easy welding and smooth installation.
The tubes conform to JIS H3300 (Japan) international standards, and the annealed straight copper tubes also comply with AS/NZS 1571 (Australia), making them suitable for medical applications.
